TASSEL Pan-genome Atlas (PanA) Pipeline¶

SS Pan-genome Atlas

Introduction

What can PanA do?¶

The Pan-genome Atlas (PanA) is a TASSEL pipeline to genetically map genomic sequence of a species to the reference genome. The large amount of high-resolution sequence tags can be used as anchor points for ongoing pan-genome constructions of many species. They can also serve as a benchmark to evaluate and direct the de novo assembly of non-reference genomes.

Principle¶

PanA exploits abundance of sequence data of population genomics, including reduced representation library technologies (e.g. Genotyping by Sequencing (GBS)) based data and whole genome shotgun (WGS) sequencing data, and looks for association between sequence tags and alleles. Conducting a whole genome scan between millions of tags and millions of SNP markers is computationally expensive. To speed up the calculation, the population structure/population stratification is not controlled for in association test. Instead, a machine learning (ML) model is trained on unique reference tags to solve the false positives originating from population structure. Unique and accurately mapped tags (Pan-genome anchors) are kept after ML filtering.

Design¶

PanA is closely related to TASSEL GBS pipeline, which is available here at http://www.maizegenetics.net/tassel/docs/TasselPipelineGBS.pdf.

Many concepts in TASSEL GBS pipeline also apply in PanA. Please find the meaning of abbreviations in TASSEL GBS pipeline documentation, if you cannot find it here. The most challenging thing in PanA is the large amount of computing time. Therefore, many tactics are used to reduce computing time, including paralleling the computation in high performance computing (HPC) clusters. As Fig. 1 shows, the computation is paralleled in HPC.

2

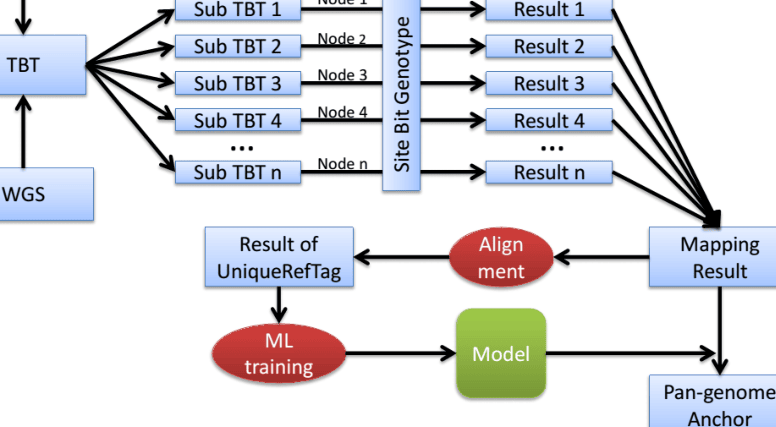

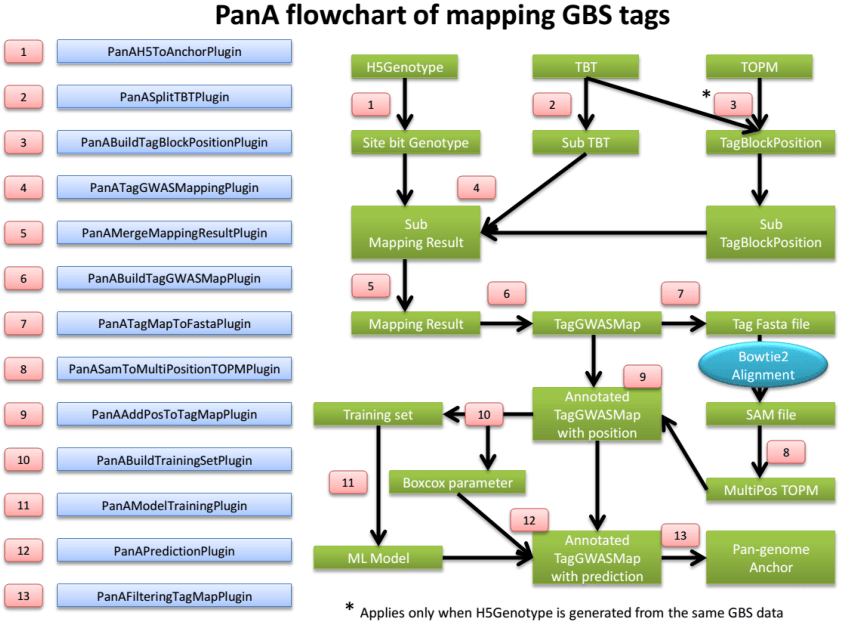

PanA design¶

computer. These PanA-specific instructions assume that you have unzipped the standalone into the directory (folder)

/programs

and then renamed the directory /programs/tassel5.0_standalone

to

/programs/tassel

If not, you will have to edit the example commands appropriately ( e.g. , replace “ tassel ” with “ tassel5.0_standalone ”).

If you have more memory available on your machine than 1.5GB, then you can increase the amount of memory available to TASSEL by opening run_pipeline.pl (or run_pipeline.bat ) in a text editor and modifying “ -Xms512m –Xmx1536m ” to (for example) “ -Xms4g ” (the -Xms option controls the amount of memory allocated to the program on startup).

The information about how to run PanA in HPC can be provided by your HPC administrator.

The latest documentation of PanA can be seen at http://www.maizegenetics.net/gbs-bioinformatics .

6

PanAH5ToAnchorPlugin¶

Summary:¶

Convert TASSEL5 HDF5 format genotype to HDF5 site bit (SBit) genotype, which is optimized for fast linkage disequilibrium (LD) calculation.

Input:¶

TASSEL5 HDF5 gneotype file

Output:¶

Site bit genotype file

Arguments:¶

PanAH5ToAnchorPlugin
-i	HDF5 format genotype file
-o	site bitgenotype file inSimpleGenotypeSBit format

Example command:¶

/programs/tassel/run_pipeline.pl -fork1 -PanAH5ToAnchorPlugin -i
M:/genotype.hmp.h5 –o M:/genotype.sBit.h5
-endPlugin -runfork1

PanASplitTBTPlugin¶

Summary:¶

Split the big TagsByTaxa(TBT) file into sub TBTs. The TBT file should be in TagsByTaxaByteHDF5TagGroups format (See TASSEL GBS pipeline). Sub TBTs can then be submitted into nodes on HPC for genetic mapping calculation, one after another.

Input:¶

TagsByTaxa file in TagsByTaxaByteHDF5TagGroups format

Output:¶

Sub TBTs

Arguments:¶

PanASplitTBTPlugin¶

-i	input TagsByTaxa(TBT) file, TagsByTaxaByteHDF5TagGroups format
-s -o	chunkSize, number of tags in a sub TBT. This determines the mapping calculation time usage in a node/computer. Default = 65536 output directoryof sub TBTs

Example command:¶

/programs/tassel/run_pipeline.pl -fork1 -PanASplitTBTPlugin –i
M:/Master.tbt.h5 -o M:/subTBTs/ -endPlugin -runfork1

7

PanABuildTagBlockPosPlugin¶

Summary:¶

Generate a file containing positions which should be blocked while conducting genetic mapping GBS tags. Since the anchor genotype may come from the same GBS data whose sequence tags will be mapped, mapping tags to the SNPs generated from themselves is not right. The positions information of GBS tags is stored in TOPM file. Those positions should be pulled out from TOPM and blocked. However, if you are mapping GBS Tags to genotypes from other platforms, this plugin can be ignored.

Input:¶

TBT file
TOPM file

Output:¶

TagBlockPosition file

Arguments:¶

PanABuildTagBlockPosPlugin
-t	input TagsByTaxa(TBT) file, TagsByTaxaByteHDF5TagGroup format
-p	input TOPM file used to generate the same genotype for mapping
-v	TOPM version value. Binary file = 1; HDF5 file = 2
-o	output tagBlockPosition file

Example command:¶

/programs/tassel/run_pipeline.pl -fork1 -PanABuildTagBlockPosPlugin
-t M:/Master.tbt.h5 -p M:/Master.topm.h5 –v 2 –o M:/Master.tbp.bin -
endPlugin -runfork1

PanASplitTagBlockPosPlugin¶

Summary:¶

Split TagBlockPosition (TBP) file into sub TBPs for parallelization on HPC.

Input:¶

 TBP file

Output:¶

Sub TBPs

Arguments:¶

PanASplitTagBlockPosPlugin -i input TagBlockPosition file chunkSize, number of tag positions in a sub TBP. This should extactly -s match number of tags in sub TBT. Default = 65536 -o output directory of sub TBPs

Example command:¶

/programs/tassel/run_pipeline.pl -fork1 -PanASplitTagBlockPosPlugin

-i M:/Master.tbp.bin -o M:/subTBPs -endPlugin -runfork1

8

PanATagGWASMappingPlugin¶

Summary:¶

Conduct genetic mapping of tags on SNPs. Before large scale calculation, users can test one sub TBT for the estimation of computing time.

Input:¶

SBit genotype
TBT
TBP

Output:¶

Mapping results

Arguments:¶

PanATagGWASMappingPlugin
-g -t -b -o	input anchor map file, SimpleGenotypeSBit format input TBT file, TagsByTaxaByteHDF5TagGroup format input TagBlockPosition file, correspongding to tags in TBT. Used to block the marker coming from the tag to be mapped. Default = null output directory
-m -c	minimum count when tag appear in taxa, default = 20, too low number lacks statistical power coreNum, value = max/Integer. Default:max, which means using all cores in a node, 4 threads/core. When the coreNum is set less than or equal to total core number, which means using coreNum cores, each core runs 1 thread

Example command:¶

/programs/tassel/run_pipeline.pl -fork1 –PanATagGWASMappingPlugin –g
M:/genotype.sBit.h5 –t M:/subTBTs/pivotTBT_00000_0_65536.h5 –b M:/subTBPs/
TBP_00000_0_65536.bin –o M:/subMappingResult/ -c 16 -endPlugin -runfork1

PanAMergeMappingResultPlugin¶

Summary:¶

Merge mapping results. Note: please do not change file name of sub mapping results. They are in an order.

Input:¶

Mapping results

Output:¶

Merged mapping result

Arguments:¶

PanAMergeMappingResultPlugin
-i	directory of mapping results of sub TBTs
-o	filename of merged mappingresult

Example command:¶

/programs/tassel/run_pipeline.pl -fork1 -PanAMergeMappingResultPlugin

9

-i M:/subMappingResult/ -o M:/MasterMappingResult.txt -endPlugin -runfork1

PanABuildTagGWASMapPlugin¶

Summary:¶

Build TagGWASMap which is in HDF5 format. It incorporates mapping results and build attributes for machine learning.

Input:¶

 Mapping result file  TagCounts file

Output:¶

 TagGWASMap file

Arguments:¶

PanABuildTagGWASMapPlugin¶

-i tag GWAS mapping result file -t tagCount file -o output file in TagGWASMap format

Example command:¶

/programs/tassel/run_pipeline.pl -fork1 -PanABuildTagGWASMapPlugin
-i M:/MasterMappingResult.txt –t M:/Master.tagCount.bin –o M:/tagMap.h5 -
endPlugin -runfork1

PanATagMapToFastaPlugin¶

Summary:¶

Output Fasta sequences from TagGWASMap

Input:¶

TagGWASMap file

Output:¶

Fasta sequence of TagGWASMap file

Arguments:¶

PanATagMapToFastaPlugin¶

-i TagGWASMap file -o output Fasta format sequence file of TagGWASMap

Example command:¶

/programs/tassel/run_pipeline.pl -fork1 -PanATagMapToFastaPlugin
-i M:/tagMap.h5 –o M:/tagMap.fasta.fa -endPlugin -runfork1

PanASamToMultiPositionTOPMPlugin¶

Summary:¶

Incorporate alignments information from Bowtie2 sam file to multiple position TOPM. Before running this

10

plugin, bowtie2 alignment of Fasta file from previous plugin should be performed. Options should include “-k 2 – very-sensitive-local –S tagMap.align.sam”

Input:¶

TagGWASMap file
Bowtie2 alignment sam file

Output:¶

Multiple position TOPM file

Arguments:¶

PanASamToMultiPositionTOPMPlugin -i bowtie2 alignemnt file in SAM format -t TagGWASMap file -o output multiple position TOPM file

Example command:¶

/programs/tassel/run_pipeline.pl -fork1 -PanASamToMultiPositionTOPMPlugin
-o M:/tagMap.h5 –i M:/tagMap.align.sam –o tagMap.multiTOPM.h5 -endPlugin -
runfork1

PanAAddPosToTagMapPlugin¶

Summary:¶

Annotate TagGWASMap file using multiple position TOPM file. Unique reference tags will be characterized for machine learning.

Input:¶

TagGWASMap file
Bowtie2 alignment sam file

Output:¶

Arguments:¶

PanAAddPosToTagMapPlugin -i TagGWASMap file -t multiple position TOPM file

Example command:¶

/programs/tassel/run_pipeline.pl -fork1 -PanAAddPosToTagMapPlugin
-i M:/tagMap.h5 –t tagMap.multiTOPM.h5 -endPlugin -runfork1

PanABuildTrainingSetPlugin¶

Summary:¶

Pull out unique reference tags and attributes from TagGWASMap and perform boxcox transformation for attributes. It also generates a boxcox parameter (lamda) file. The log10 value of distance between alignment position and genetic mapping position is the independent variable.

Input:¶

TagGWASMap file

11

Output:¶

Training set file
Boxcox parameter file

Arguments:¶

PanABuildTrainingSetPlugin -m TagGWASMap file -t training set file -r R path -b boxcox parameter file

Example command:¶

/programs/tassel/run_pipeline.pl -fork1 -PanABuildTrainingSetPlugin
-m M:/tagMap.h5 –t M:/train/training.arff –r M:/R-3.0.2/bin/Rscript –b
M:/train/boxcoxParameter.txt -endPlugin -runfork1

PanAModelTrainingPlugin¶

Summary:¶

Train a M5Rules model from training set. It generates a model which will be used in prediction. Also it generates two report files. One is “prediction.txt”. The actual value and prediction values can be seen in this file. The other file is “accuracyTable.txt”. The proportion of remaining tags and mapping resolution distribution at different cutoff can be seen in this file. Users can specify cutoff value for later filtering based on this table.

Input:¶

Training set file

Output:¶

Model file
Training report files

Arguments:¶

PanAModelTrainingPlugin¶

-t training set file -w path of weka library -m model file -r directory of training report

Example command:¶

/programs/tassel/run_pipeline.pl -fork1 -PanAModelTrainingPlugin
-t M:/train/training.arff –w M:/Weka-3-6/weka.jar –m M:/m5.mod –r
M:/train/report/ -endPlugin -runfork1

PanAPredictionPlugin¶

Summary:¶

Make predictions based on the trained model. Results are then written into TagGWASMap file

12

Input:¶

TagGWASMap file
Trained model
Boxcox parameter file

Output:¶

Arguments:¶

PanAPredictionPlugin¶

-t TagGWASMap file -m trained machine learning model -b boxcox parameter file -w path of weka library

Example command:¶

/programs/tassel/run_pipeline.pl -fork1 -PanAPredictionPlugin
-t M:/tagMap.h5 –m M:/m5.mod –b M:/train/boxcoxParameter.txt –w M:/Weka-3-
6/weka.jar -endPlugin -runfork1

PanAFilterTagMapPlugin¶

Summary:¶

Generate Pan-genome anchor file based on users’ cutoff (bp).

Input:¶

TagGWASMap file

Output:¶

Anchor file

Arguments:¶

PanAFilteringTagMapPlugin -t TagGWASMap file -a anchor file -c distance cutoff

Example command:¶

/programs/tassel/run_pipeline.pl -fork1 -PanAFilterTagMapPlugin

-t M:/tagMap.h5 –m M:/m5.mod –a M:/anchor.txt –c 50000 -endPlugin -runfork1

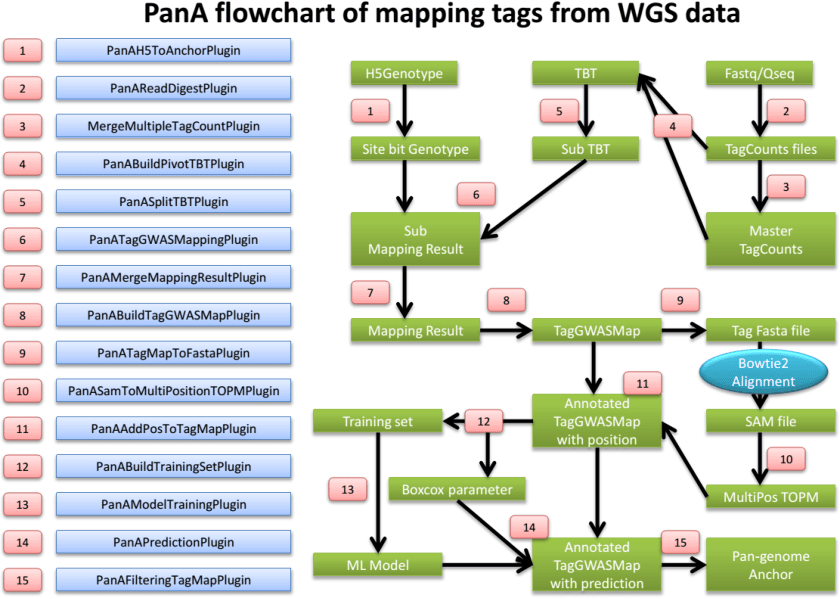

PanAReadDigestPlugin¶

Summary:¶

Virtually digest Fastq or Qseq files into sequence fragments. Using short recognition sequence to sample genomic sequence to reduce computing time

Input:¶

Fastq or Qseq files
LaneTaxa key file (see Appendix 1)

Output:¶

13

TagCount files

*Arguments:*
PanAReadDigestPlugin
-i	input directory of Fastq or Qseq files
-f	input format value. 0 = Fastq. 1 = Qseq
-k	laneTaxa key file which links Fastq/Qseq file with samples
-s	recognition sequence for virtual digest. Default: GCTG
-l	customed tag length
-o	output directoryof tagcount files

Example command:¶

/programs/tassel/run_pipeline.pl -fork1 -PanAReadDigestPlugin
-i M:/fastq/ -f 0 –k M:/laneTaxaKey.txt –s GCTG –l 80 –o M:/tagCounts/ -
endPlugin -runfork1

MergeMultipleTagCountPlugin¶

Summary:¶

Please see the TASSEL GBS pipeline

PanABuildPivotTBTPlugin¶

Summary:¶

Virtually digest Fastq or Qseq files into sequence fragments. Using short recognition sequence to sample genomic sequence to reduce computing time

Input:¶

Mater TagCount file
TagCount files of taxa

Output:

Master TBT file

Arguments:¶

PanABuildPivotTBTPlugin
-m	master TagCount file
-d	directory containing tagCount files
-o	output TBT

Example command:¶

/programs/tassel/run_pipeline.pl -fork1 -PanABuildPivotTBTPlugin
-m M:/Master.tagCount.bin -d M:/tagCounts/ –o M:/Master.tbt.h5 -endPlugin -
runfork1

14

Citation¶

Please cite the paper:

Fei Lu, Maria C Romay, Jeff C Glaubitz, Peter J Bradbury, Rob J Elshire, Tianyu Wang, Yu Li, Yongxiang Li, Kassa Semagn, Xuecai Zhang, Alvaro G. Hernandez, Mark A. Mikel, Ilya Soifer, Omer Barad, Edward S Buckler. High resolution genetic mapping of pan-genome sequence anchors: an example from maize. ( in review )

Appendix 1: LaneTaxa Key file example¶

The LaneTaxa key file is formatted as tab-delimited text. You can create it from Excel if you save it as tabdelimited text. The sample names must not contain spaces, colons (‘:’) or underscores . However, it is OK to include dashes, or parentheses.

Lane Taxa t0.fq t0 t1.fq t1 t2.fq t2 t3.fq t3 t4.fq t4
